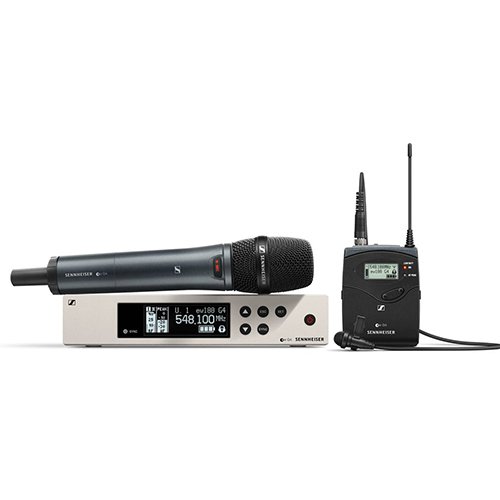

Sennheiser Combo Mic EW 100 G4-ME2/835-S-C Microphone & Transmitter

Add to wishlist
Compare
  • Frequency Range: C: 734 – 776 MHz
  • Dimensions: Approx. 190 x 212 x 43 mm
  • Compander: Sennheiser HDX
  • THD (Total Harmonic Distortion): ≤ 0.9%
  • Weight: Approx. 980grams

₹97,500.00

Sennheiser Combo Mic EW 100 G4-ME2/835-S-C Microphone & Transmitter. Ideal for Singers, Presenters, Events, and Live shows | Upto 20 channels and 330 feet Range line of Sight.

Description: “The Sennheiser Combo Mic EW 100 G4-ME2/835-S-C is a versatile wireless system designed for singers, presenters, and musicians. Offering up to 42 MHz tuning bandwidth in a stable UHF range, this system allows for fast and simultaneous setup of up to 12 linked systems. It includes a dynamic handheld microphone e 835, a robust bodypack transmitter, and an unobtrusive clip-on microphone ME 2-II (omnidirectional) with high speech intelligibility, making it ideal for daily use on stage. The true diversity half-rack receiver, housed in a full-metal casing, features an intuitive LCD display for easy control. With up to 20 compatible channels, a wide UHF bandwidth, and a transmission range of up to 100 meters (300 feet), this system delivers reliable and professional live sound.

Key Features:

  • Rugged all-in-one combo wireless system for singers, presenters, and moderators
  • Includes dynamic handheld microphone e 835, robust bodypack transmitter, and clip-on microphone ME 2-II (omnidirectional)
  • True diversity half-rack receiver with intuitive LCD display
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Fast frequency allocation for up to 12 receivers
  • Up to 42 MHz bandwidth with 1680 selectable frequencies
  • Transmission Range: up to 100 meters / 300 feet
  • High RF output power (up to 30 mW) depending on country regulations.

EM 100 G4 Specifications:

  • Frequency Range: C: 734 – 776 MHz
  • Dimensions: Approx. 190 x 212 x 43 mm
  • Compander: Sennheiser HDX
  • THD (Total Harmonic Distortion): ≤ 0.9%
  • Weight: Approx. 980 g
  • Audio Output: 6.3 mm jack socket (unbalanced): +12 dBu; XLR socket (balanced): +18 dBu
  • Signal-to-Noise Ratio: ≥ 110 dBA
  • Switching Bandwidth: up to 42 MHz
  • Peak Deviation: ±48 kHz
  • Nominal Deviation: ±24 kHz
  • Modulation: Wideband FM
  • Power Supply: 12 V DC
  • Antenna Connector: 2 BNC sockets
  • Current Consumption: 300 mA
  • Adjacent Channel Rejection: Typically ≥ 65 dB
  • Intermodulation Attenuation: Typically ≥ 65 dB
  • Receiving Frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps
  • RF Sensitivity: < 2.5 μV for 52 dBA eff S/N
  • Squelch: Low: 5 dBµV, Middle: 15 dBµV, High: 25 dBμV
  • Equalizer Presets: Flat, Low Cut (-3 dB at 180 Hz), Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz), High Boost (+6 dB at 10 kHz)
  • Temperature Range: -10 °C to +55 °C
  • Receiver Principle: True Diversity
  • Blocking: ≥ 70 dB”
SKU: Sennheiser Combo Mic EW 100 G4-ME2/835-S-C Categories: , , , Tags: , ,

EM 100 G4 Receiver:

  • Frequency Range: C: 734 – 776 MHz
  • Dimensions: Approx. 190 x 212 x 43 mm
  • Compander: Sennheiser HDX
  • Total Harmonic Distortion (THD): ≤ 0.9%
  • Weight: Approx. 980 g
  • Audio Output:
    • 6.3 mm jack socket (unbalanced): +12 dBu
    • XLR socket (balanced): +18 dBu
  • Signal-to-Noise Ratio: ≥ 110 dBA
  • Switching Bandwidth: up to 42 MHz
  • Peak Deviation: ±48 kHz
  • Nominal Deviation: ±24 kHz
  • Modulation: Wideband FM
  • Power Supply: 12 V DC
  • Antenna Connector: 2 BNC sockets
  • Current Consumption: 300 mA
  • Adjacent Channel Rejection: Typically ≥ 65 dB
  • Intermodulation Attenuation: Typically ≥ 65 dB
  • Max. Receiving Frequencies: 1680, adjustable in 25 kHz steps
  • RF Sensitivity: < 2.5 μV for 52 dBA eff S/N
  • Squelch:
    • Low: 5 dBµV
    • Middle: 15 dBµV
    • High: 25 dBμV
  • Equalizer Presets:
    1. Flat
    2. Low Cut (-3 dB at 180 Hz)
    3. Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    4. High Boost (+6 dB at 10 kHz)
  • Temperature Range: -10 °C to +55 °C
  • Receiver Principle: True Diversity
  • Blocking: ≥ 70 dB

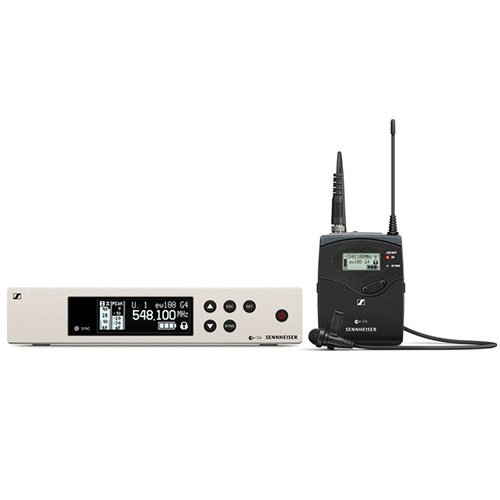

SK 100 G4 Bodypack Transmitter:

  • Dimensions: Approx. 82 x 64 x 24 mm
  • Compander: Sennheiser HDX
  • Total Harmonic Distortion (THD): ≤ 0.9%
  • Weight (incl. batteries): Approx. 160 g
  • Signal-to-Noise Ratio: ≥ 110 dBA
  • RF Output Power: Max. 30 mW
  • Switching Bandwidth: up to 42 MHz
  • Peak Deviation: ±48 kHz
  • Nominal Deviation: ±24 kHz
  • Operating Time: Typically 8 h
  • Modulation: Wideband FM
  • Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current Consumption:
    • At Nominal Voltage: typ. 180 mA
    • With Transmitter Switched Off: ≤ 25 µA
  • Input Impedance: 40 kΩ, unbalanced / 1 MΩ
  • Max. Input Voltage: 3 Veff
  • Powering:
    • 3 V Battery / 2.4 V Rechargeable Battery
  • Transmission Frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps
  • AF Frequency Response:
    • Mic: 80 – 18,000 Hz
    • Line: 25 – 18,000 Hz
  • Temperature Range: -10 °C to +55 °C
  • Frequency Stability: ≤ ±15 ppm

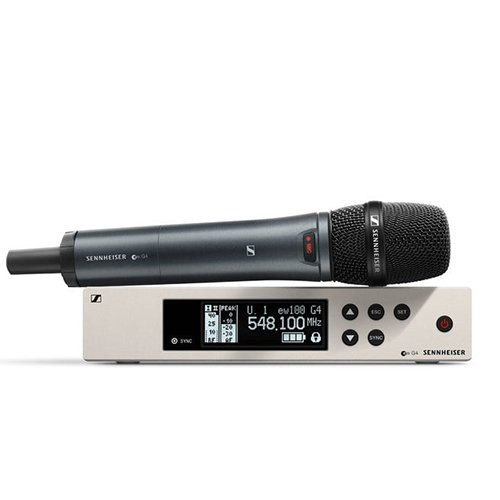

SKM 100 G4-S Handheld Transmitter:

  • Dimensions: Approx. Ø 50 x 265 mm
  • Compander: Sennheiser HDX
  • Total Harmonic Distortion (THD): ≤ 0.9%
  • Weight (incl. batteries): Approx. 450 g
  • Signal-to-Noise Ratio: ≥ 110 dBA
  • RF Output Power: Max. 30 mW
  • Switching Bandwidth: up to 42 MHz
  • Peak Deviation: ±48 kHz
  • Nominal Deviation: ±24 kHz
  • Operating Time: Typically 8 h
  • Modulation: Wideband FM
  • Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current Consumption:
    • At Nominal Voltage: typ. 180 mA
    • With Transmitter Switched Off: ≤ 25 µA
  • Input Impedance: 40 kΩ
  • Max. Input Voltage: 3 Veff
  • Powering:
    • 3 V Battery / 2.4 V Rechargeable Battery
  • Transmission Frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps
  • AF Frequency Response: 80 – 18,000 Hz
  • Temperature Range: -10 °C to +55 °C
  • Frequency Stability: ≤ ±15 ppm

ME 2 Microphone:

  • Connector: 3.5 mm jack
  • Frequency Response: 50 to 18,000 Hz (ME 2-II)
  • Max. Sound Pressure Level: 130 dB
  • Cable Length: approx. 1.60 m
  • Transducer Principle: pre-polarized condenser microphone
  • Pick-up Pattern: omni-directional
  • Sensitivity in Free Field, No Load (1kHz): 20 m
